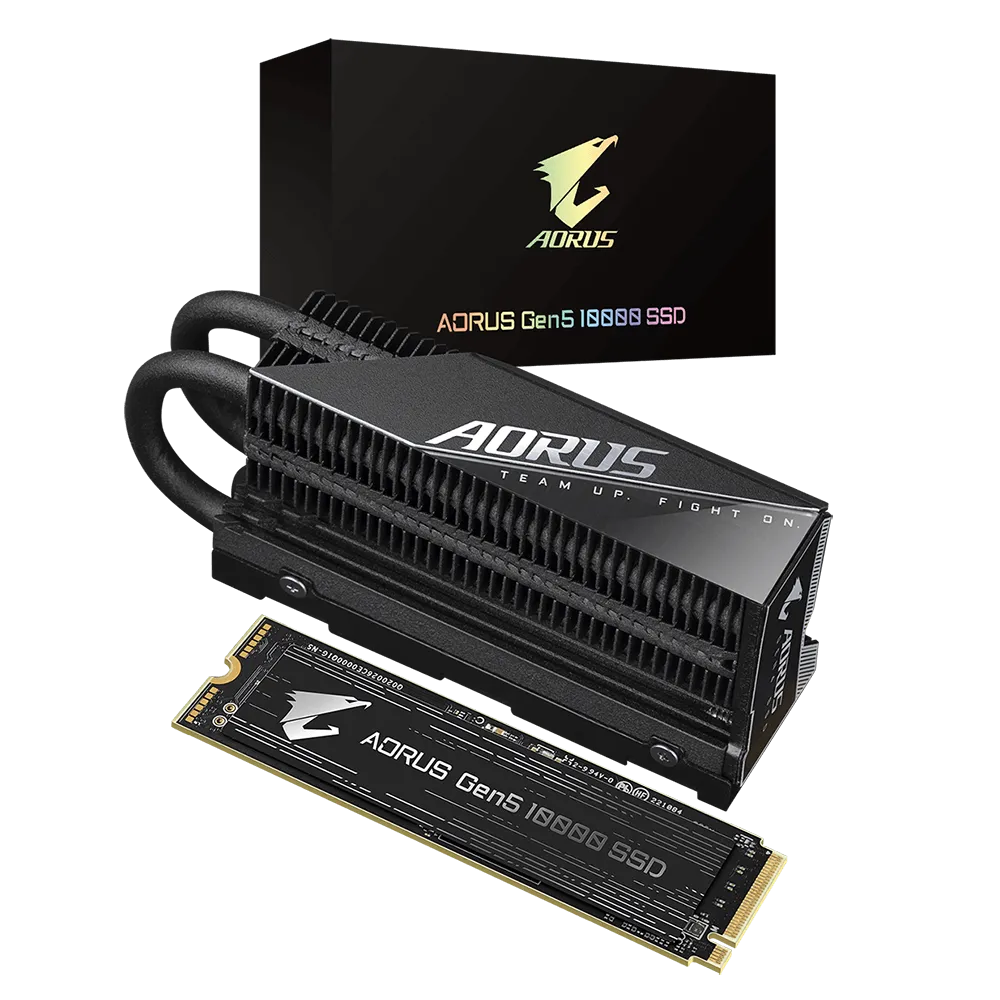

AORUS Gen5 10000 SSD in M.2 2280 form factor has been introduced by GIGABYTE, a well-known manufacturer of motherboards, graphics cards, and other components. New gaming laptops from the G5 series were just released by the company in India.
So let's explore its features and specifications.
AORUS Gen5 1000
With a 40% speed boost over PCIe 4.0 SSDs, the AORUS Gen5 10000 SSD uses the most recent PCIe 5.0 controller and lightning-fast 3D-TLC NAND flash. The distinct designs of the SSD and heatsink give users additional alternatives for system configurations and thermal options, while the SSD monitoring feature enables users to track productivity, thermal properties, and potential in real-time using Gigabyte's GCC application.
The AORUS Gen5 10000 SSD supports the most modern PCIe 5.0 technology on new motherboards, enhancing efficiency and transfer speed. It has an eight-channel Phison PS5026-E26 controller, which offers improved control over spontaneous read speed.
The AORUS Gen5 10000 SSD has a 40% faster access performance than its predecessor thanks to its 3D-TLC NAND Flash and integrated LPDDR4 cache. For content makers, gamers, and those looking for high overclocking, the AORUS Gen5 10000 SSD offers top-notch performance that is compatible with PCIe 5.0 on AMD and Intel systems.
Image Credit-technewsspace
Consumers may track the performance of the AORUS Gen5 10000 SSD in real-time with the GCC app, which is only available from Gigabyte. Because the SSD and heatsink are packaged separately on the AORUS Gen5 10000 SSD, users have the option of using either the motherboard's included cooling or the external coolant to satisfy their thermal requirements.
For the AORUS Gen5 10000 SSD to function at its 10 GB/s peak read speed, it requires a motherboard that allows GIGABYTE PCIe 5.0. The ideal base for the AORUS Gen5 10000 SSD is provided by GIGABYTE motherboards, which have been tuned and tested using expert R&D tweaks and monitoring tools.
For a read speed of 12 GB/s, the research and development team is still developing new NAND Flash ICs and components. When these components are prepared, consumers can benefit from GIGABYTE's outstanding product to fully utilize PCIe 5.0 SSDs.
Features
- Top-tier Performance Power
- Cutting Edge Speed
- NAND Flash Selection for High Quality and Performance
- Zoned Namespaces (ZNS)
- M.2 Thermal Guard XTREME with Nanocarbon Coating
- Aluminum M2 Baseplate
- Dual side High Thermal Conductivity Pad
Specifications
|
Interface |
PCI-Express 5.0 x4, NVMe 2.0 |
|
Total Capacity |
1000GB |
|
NAND |
3D TLC NAND Flash |
|
Form Factor |
M.2 2280 |
|
External DDR Cache |
LPDDR4 2GB |
|
Sequential Write and Sequential Read Speed |
(Write)- upto 8500MB/s (Read)- upto 9500MB/s |
|
Dimension (with and without Heasink) |
(With)- 92mm x 23.5mm x 44.7mm (Wihtout)- 80mm x 22mm x 2.3mm |
|
Meam time between failure (MTBF) |
1.6 million hours |
|
Power Consumption (active and idle) |
(Idle)- <85mW (Active)- Read (<10W) and Write (<10W) |
|
Temperature (operating and storage) |
Operating (0 degree celsius to 70 degree celsius) Storage (-40 degree celsius to 85 degree celsius) |
|
Warranty |
Limited 5 years |
Price
The AORUS Gen5 10000 SSD's cost and distribution have not yet been disclosed.
