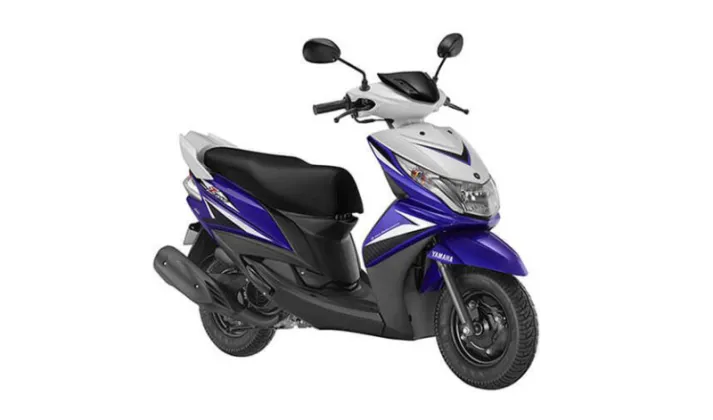

Yamaha Ray Z 113
Yamaha Ray Z 113

NRs. 2,00,900

Engine

Engine Type M

Air-Cooled, 4-Stroke, SOHC, 2-Valve Single Cylinder

Engine Displacement (CC)

113 cc

Power (PS@rpm)

7.1 PS @ 7500 rpm

Torque (Nm@rpm)

8.1 Nm @ 5000 rpm

Bore

50 mm

Stroke

57.8 mm

Drive Type - M

V-belt automatic

Valves (per cylinder)

2

Fuel System

Carburetor

Ignition

CDI(Capacitor Discharge lgnition)

Fuel Type - M

Petrol

Transmission

No Of Gears

V-Belt Automatic

Brakes

Brakes Front - M

Drum

Brakes Rear- M

Drum

Performance and Fuel economy

Mileage (ARAI) kmpl - M

66 Kmpl

0-60 (km/h)

12

Top Speed (Km/h) - M

86 Kmph

Chassis and Suspension

Chassis Type

Underbone

Suspension-Front

Telescopic

Suspension-Rear

Unit swing

Tyres and Wheels

Tyre Size (Front)

90/100 - 10

Tyre Size (Rear)

90/100 - 10

Wheel Size- M

Front :-10 inch Rear :-10 inch

Tyre Type - M

Tubeless

Wheels Type (Pressed Steel/ Alloy)

Alloy

Dimensions

Length*Width*Height

1835*675*1090

Wheelbase(mm)

1270 mm

Ground Clearance (mm)

128 mm

Fuel Capacity (Litres)

5.2 Ltrs

Kerb Weight - M

104 Kg

Electricals

Battery

12 V - 5 Ah (10 H)

Head Lamp

12V 35/35W XI, Halogen Bulb

Warranty

Standard Warranty (Years)

2

Standard Warranty (kilometers)

30000
