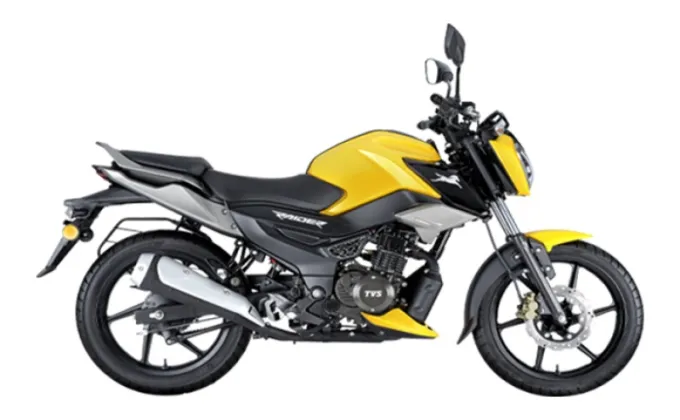

TVS Raider
TVS Raider

NRs. 2,48,000

Engine

Engine Type M

Single cylinder, 4 stroke, fuel injection, air-oil cooled, spark ignition engine

Engine Displacement (CC)

124.8 cc

Power (PS@rpm)

11.38 PS @ 7500 rpm

Torque (Nm@rpm)

11.2 Nm @ 6000 rpm

Bore

53.5 mm

Stroke

55.5 mm

No Of Cylinders - M

1

Drive Type - M

Chain Drive

Valves (per cylinder)

3

Fuel System

Fuel Injection

Ignition

Electronic Control Unit

Transmission

No Of Gears

5 Speed

Brakes

Brakes Front - M

Disc

Brakes Rear- M

Drum

Performance and Fuel economy

Mileage (ARAI) kmpl - M

67 kmpl

Top Speed (Km/h) - M

99 kmph

Chassis and Suspension

Chassis Type

Single cradle tubular frame

Suspension-Front

Telescopic oil damped

Suspension-Rear

5 step adjustable, gas charged hydraulic shock with swing arm

Tyres and Wheels

Tyre Size (Front)

80/100 - 17

Tyre Size (Rear)

100/90 - 17

Tyre Type - M

Tubeless

Wheel Size- M

Front :-431.8 mm,Rear :-431.8 mm

Wheels Type (Pressed Steel/ Alloy)

Alloy

Dimensions

Length*Width*Height

2070*785*1028

Wheelbase(mm)

1326 mm

Ground Clearance (mm)

180 mm

Fuel Capacity (Litres)

10 L

Kerb Weight - M

123 kg
